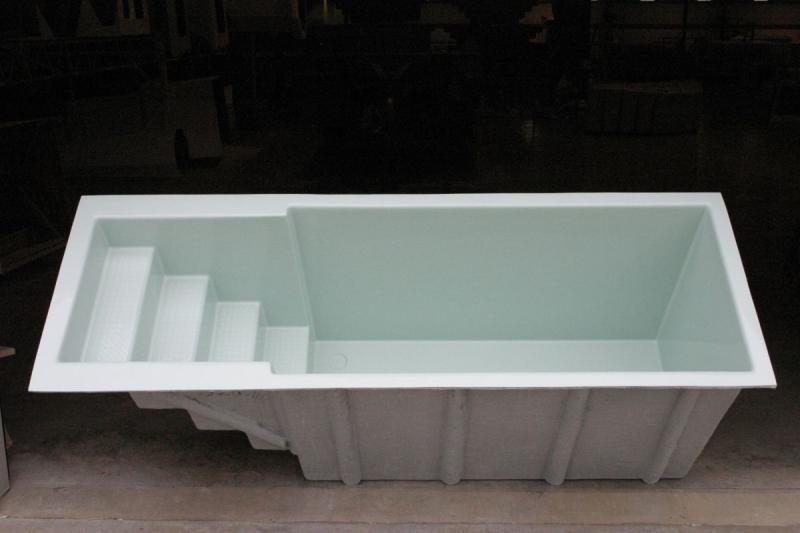

Single Entry Baptistry 10Ft Wide

Manufacturer: ASB

Product ID: ASB-E1-110

Weight: 375.00 lbs

Call for price

Add to wish list E-mail to a friend

Overview

Fiberglass Baptistry • 4-8 week lead time • Capacity 600 gallons • Dry weight 220 lbs. (about 3800 lbs filled) • 10' Length x 3'7" Wide x 43" Deep • Colors blue, white, bone. (aqua with extended lead time) • Ships by Motor Freight, Factory Truck or can be picked up in Weedowee, Alabama

Our Standard baptistry finish is of the highest quality. We recommend the baptistry be drained after each use. If water will be left in the unit then we recommend upgrading to the premium gel coat for extended water usage.

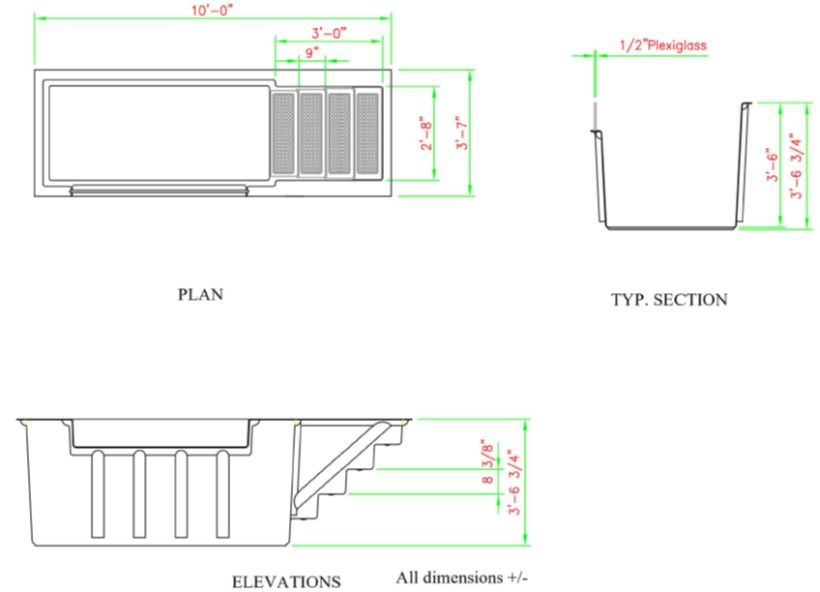

- Fiberglass Church Baptistry -Please see picture for dimensions and detail
- Baptistry Window (if ordered) will be shipped "ready to install" and are caulked in place on-site.

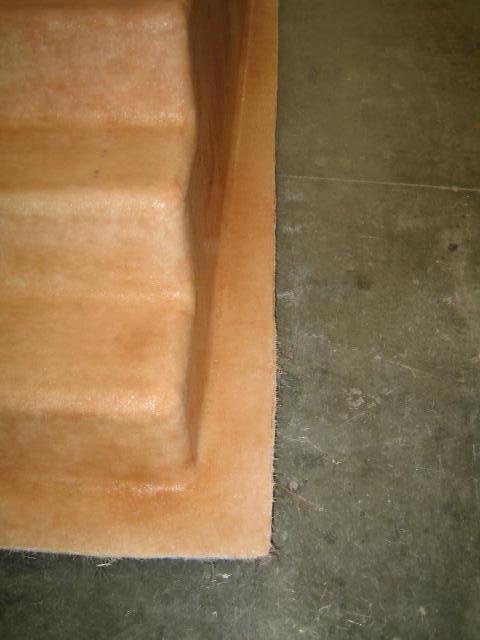

- Fiberglass baptistries have a lip around the edge which allows for drywall, tile or other finishing material to be placed. The lip is usually about one to three inches and may be trimmed on site for an exact fit. Although it's best to wait on framing until you have the baptistry on-site, remember to allow for the framing when calculating dimensions.
- Drain may be located in any corner of the baptistry. The drain is installed on site by your plumber, remember to leave a slight slope of about 1/16" or more towards the drain corner. Do not install drains in center of baptistry.
- Be sure to install an overflow drain above the waterline.
- A regular faucet may be installed on the upper wall, or a wall mounted fill port may be installed.
- 5 year MFG warranty
Materials: Laminated fiberglass with polyester resin
Performance characteristics are as follows:
- Tensile strength: 40,000 pounds per square inch
- Flexural strength: 4,770 pounds, average per inch of laminate width
- Tensile Stress: 2,650 pounds per inch of laminate width
- Fabrication: 1. Floor: Build up on leveling-skid

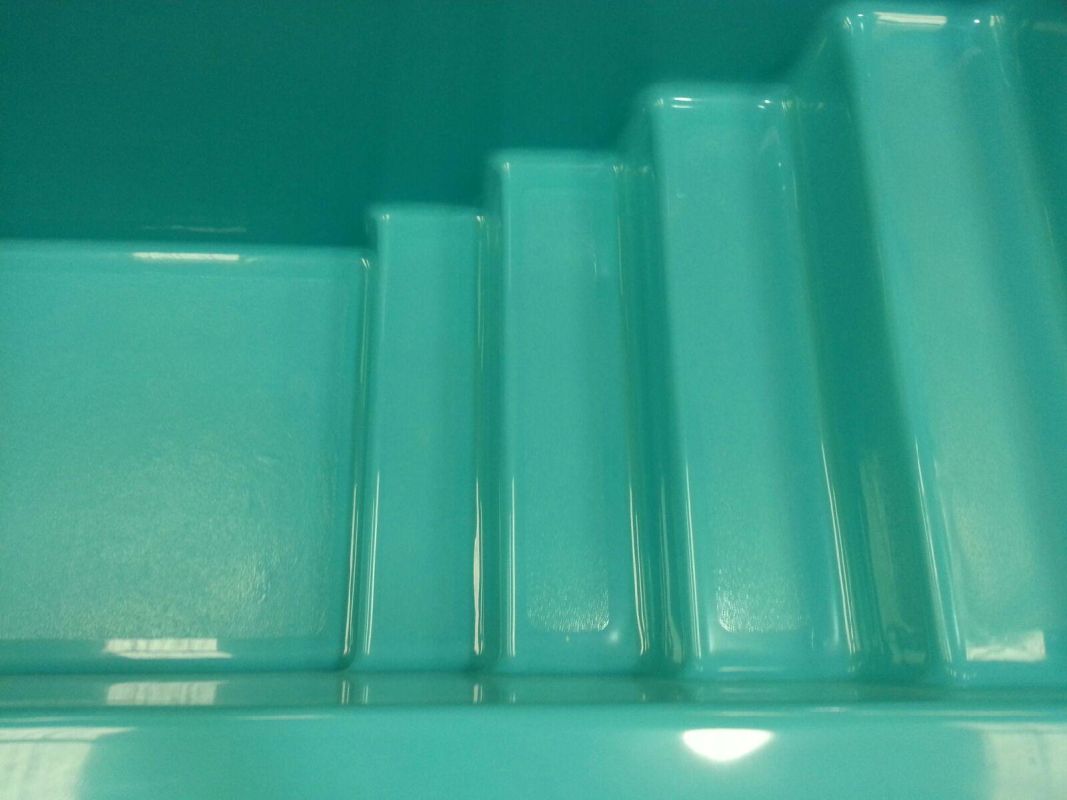

2. Stair treads: Skid resistant raised button finish
3. Interior vertical surfaces: Smooth high gloss sanitary finish
