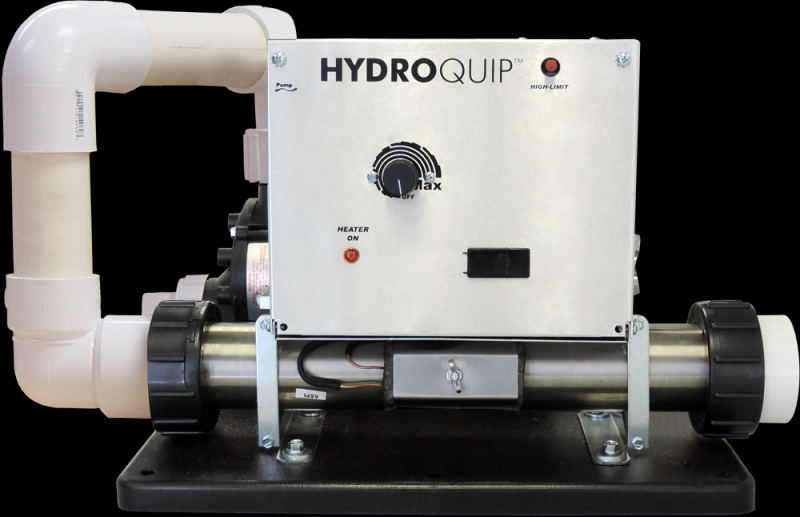

Circulation Water Heater for Portable Baptistries up to 150 gallons

Circulation Water Heater for Portable Baptistries up to 150 gallons

Manufacturer: HQ

Product ID: HQ-7010

Weight: 1.00 lbs

$795.00
~~$915.00~~

Free Shipping

Add to wish list E-mail to a friend

Overview

The circulation water heater for our frame only and cabinet style portable baptistries. • Includes everything needed for an easy installation • This is a 1500 watt (120v) unit and only suitable for baptistries up to about 150 gallons • Features a thermostat, heater and pump. • Use in new or existing mall or portable baptistries. We recommend this unit for churches who will leave water in the baptistry continuously and need it ready to go at any time as you simply set the thermostat and the unit will cycle on and off to maintain the water temperature.) • The unit does not have a timer since you will use the thermostat to control the on/off cycle. • Includes a 15ft GFCI protected cord/plug set. • Built in Thermostat cycles unit on and off to maintain temperature 24/7 • ONE YEAR WARRANTY

Manufactured using all UL Registered parts and an ETL listing.
Heater, pump, base and all fittings included
For use with 120v only.
Heater size (with pump installed) 16" tall x 24" wide x 16" deep

Additional Features

Unique water flow design for quiet system operation
Air Switch allows for manual top side control (idle, start) of heater
Must be used on a circuit that has GFCI (Ground Fault protection)
Long life Incoloy heater element with stainless steel enclosure
ITT Hydro Aire whisper quiet pump with cord & pre-wired plug connector
Thermostat
Built in Heater
Power ON indicator light
Timer Control for automatic operation
Manual Control switch for manual operation
High Limit switch with reset button
Internal Pressure Switch to prevent dry firing
Mounting base with mounting screws
Heater to Pump PVC pipe with fittings
Baptistry wall fittings included
Easy Hit incoming wiring lugs
UL Registered components and ETL listing

Troubleshooting a Portable Baptistry HEater

If the pump is running but the unit is not heating:

Turn the thermostat all the way to the right
Push the High Limit reset button
There is a light on this unit that indicates the heater is getting power…verify if the light is coming on.
If light is on, give the unit 4-8 hours to warm up. You will not feel hot water at the outlet as this is a very low heat unit because it runs on 120v
If light is not coming on then try to adjust the Pressure Switch according to directions in the manual
If after adjustment and still no light, then it could be either a bad pressure switch, possible mis-wired system or possibly the church has something unusual in their electrical wiring.Check for a mis-wired hot or neutral that is providing enough power to power the pump but not enough to heat the water and not tripping the GFCI.
Confirm breaker is correct size
Have a qualified electrician open the unit and Verify power to the pressure switch and coming out of the pressure switch…..
verify voltage and amperage into the heating element (should be about 115v and 8 amps)
If no voltage (or ghost voltage) to element then verify both contacts are closing
Verify the wiring in the unit is indeed wired according to the mfg wiring diagram -
take pictures of the wiring inside the unit to forward to factory for verification
if no power out of pressure switch thenadjust the pressure switch according to instructions below
following adjustment of PS verify heat light indicator or if no light…. verify power in and out of PS…if no power out after adjusting then suspect a bad PS…let us know

If power coming out of PS and light is working then it should begin to heat at around 4 degrees per hour..you will not feel the heat until after an 8+ hours or so…you cannot feel heat by sticking your hand in front of the outlet so to see if it is working

Please note that the pressure switch in this system doesn’t have a flat head screwdriver slot, it has an adjustment “star ring” that can be adjusted by hand.
