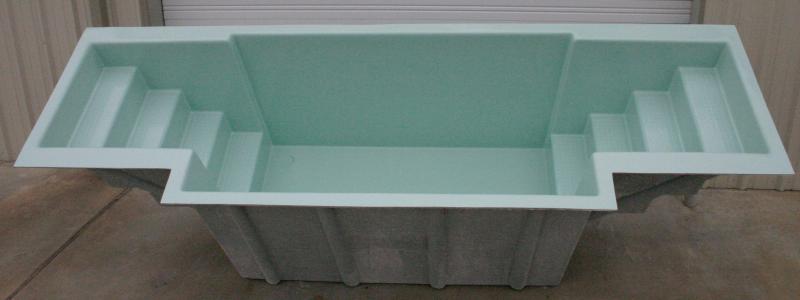

Fiberglass Church Baptistry 14Ft Wide Double Entry

Fiberglass Church Baptistry 14Ft Wide Double Entry

Manufacturer: ASB

Product ID: ASB-710

Weight: 375.00 lbs

Call for price

Add to wish list E-mail to a friend

Overview

13ft 4 in. Long x 4ft 4 inch wide x 43" tall • Available in White, Blue, Bone and Aqua • Double Step Entry •>Baptistry is available with or without plexiglas viewing window • 12 mil minimum thickness gel coat features a 5 year warranty Allow 4-12 weeks for delivery

Our Standard baptistry finish is of the highest quality. We recommend the baptistry be drained after each use. If water will be left in the unit then we recommend upgrading to the premium gel coat for extended water usage.

Features

- Fiberglass Church Baptistry -Please see picture for dimensions and detail
- Baptistry Window (if ordered) will be shipped "ready to install" and are caulked in place on-site.
- Fiberglass baptistries have a lip around the edge which allows for drywall, tile or other finishing material to be placed. The lip is usually about one to three inches and may be trimmed on site for an exact fit. Although it's best to wait on framing until you have the baptistry on-site, remember to allow for the framing when calculating dimensions.
- Drain may be located in any corner of the baptistry. The drain is installed on site by your plumber, remember to leave a slight slope of about 1/16" or more towards the drain corner. Do not install drains in center of baptistry.
- Be sure to install an overflow drain above the waterline.
- A regular faucet may be installed on the upper wall, or a wall mounted fill port may be installed.
- 5 year MFG warranty

Construction Details
Materials: Laminated fiberglass with polyester resin
Performance characteristics are as follows:
- Tensile strength: 40,000 pounds per square inch
- Flexural strength: 4,770 pounds, average per inch of laminate width
- Tensile Stress: 2,650 pounds per inch of laminate width
- Fabrication: 1. Floor: Build up on leveling-skid
2. Stair treads: Skid resistant raised button finish
3. Interior vertical surfaces: Smooth high gloss sanitary finish

Baptistry Features

Easily Installed or Relocated
Competitively Priced with Other Materials
10 Year Warranty
Must be Drained within 72 hours or Order with Premium Gel Coat
Unit must be framed in place for support

Baptistry Details

Fiberglass Church Baptistry -Please see picture for dimensions and detail
Baptistry Windows (if ordered) will be shipped "ready to install" and are caulked in place on-site.
Fiberglass baptistries have a lip around the edge which allows for drywall, tile or other finishing material to be placed. The lip is usually about one to three inches and may be trimmed on site for an exact fit.
Although it's best to wait on framing until you have the baptistry on-site, remember to allow for the framing when calculating dimensions.

Faucet and Drain Locations

Drain (not included) may be located in any corner of the baptistry. The drain is installed on site by your plumber, remember to leave a slight slope of about 1/16" or more towards the drain corner.
Do not install drains in center of baptistry.
Be sure to install an overflow drain above the waterline.
A regular faucet may be installed on the upper wall, or a wall mounted fill port may be installed.

Installation Details
