ASB-6000 - Baptistry Water Heater with Timer
  • Baptistry heater for use in new or existing baptistries.
  • Available in 5.5kw for most baptistries (up to 1000 gallons) or with the booster heater (11kw) to service larger pools.

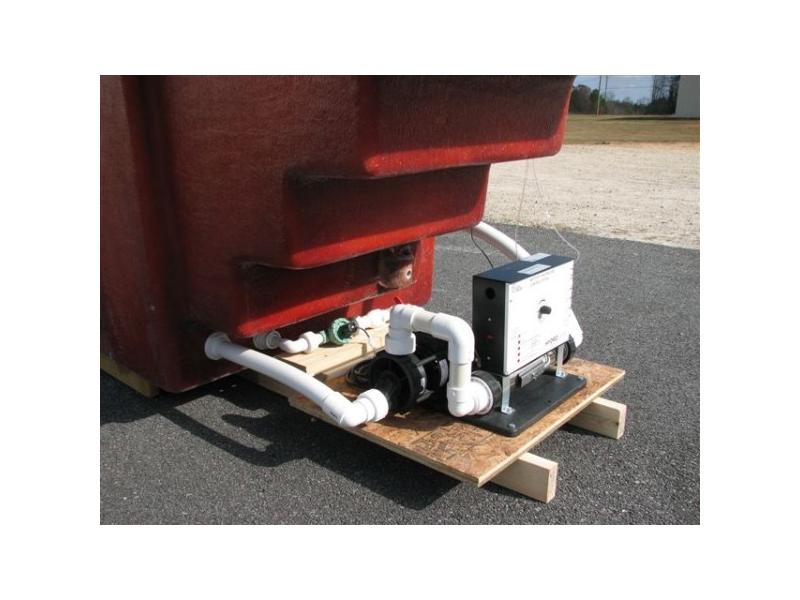

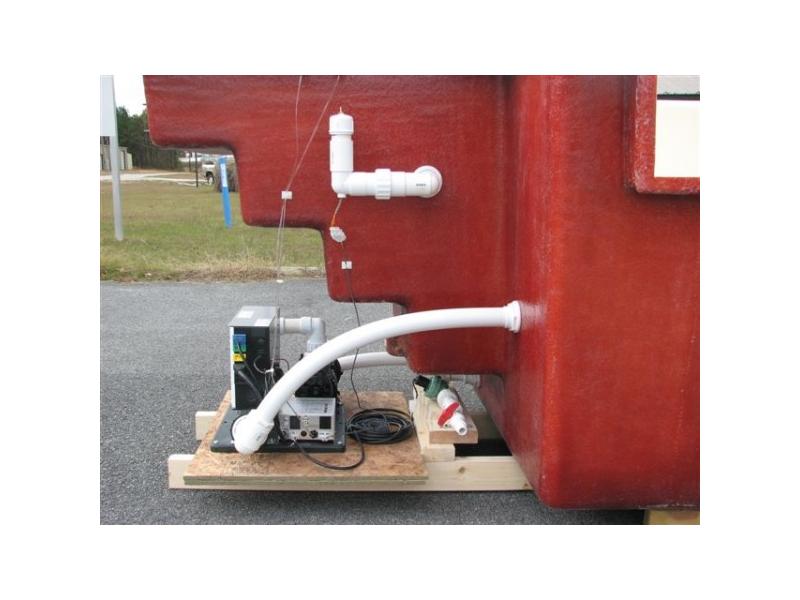

  • Baptistry circulation heater and pump unit can sit on ground or a platform up to 20ft from the baptistry.
  • For safety, this unit MUST be installed/used on a GFCI protected circuit.
  • Pre-wired, plug together connectors make installation easy.
  • On-off switch can be mounted remotely (works via air pressure)
  • Built in Time Clock and Thermostat.
  • ONE YEAR WARRANTY
  • Options Sold Separate: Auto Drain, Auto Fill, Remote Control Panel, UV sanitizer, Booster Heater,
KW - Select desired wattage
CR6OPT - Optional Accesories. NOTE: If ordering the auto-fill and auto-drain options, you do not need to order a seperate drain, overflow or fill valve. The overflow fitting is included for the top of the water level, you will need to provide the pvc pipe to connect back in to your drain line.
Price per Each
Free Shipping Orders Over $150 that ship UPS!
  • Manufactured using all UL Registered parts and an ETL listing.

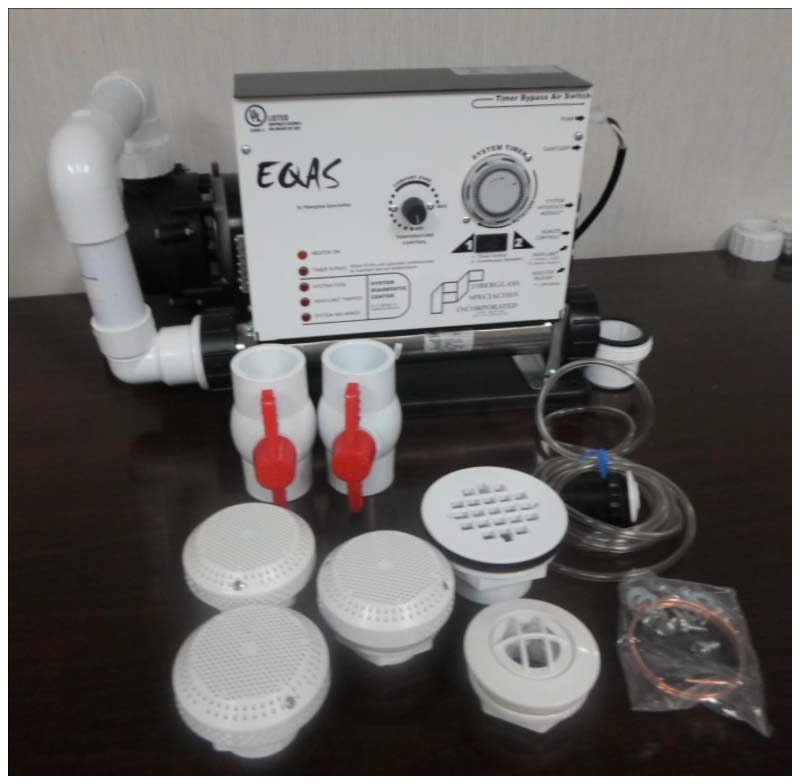

  • Heater, pump, base and all fittings included
  • For use with 240v only.
  • Electrical Requirements:  2 pole, 40 amp (60 amp with booster)
  • Heater size (with pump installed) 16" tall x 24" wide x 16" deep

Additional Features on the AS- Baptismal Pool Heater

  • Unique water flow design for quiet system operation
  • Air Switch allows for manual top side control (idle, start) of heater

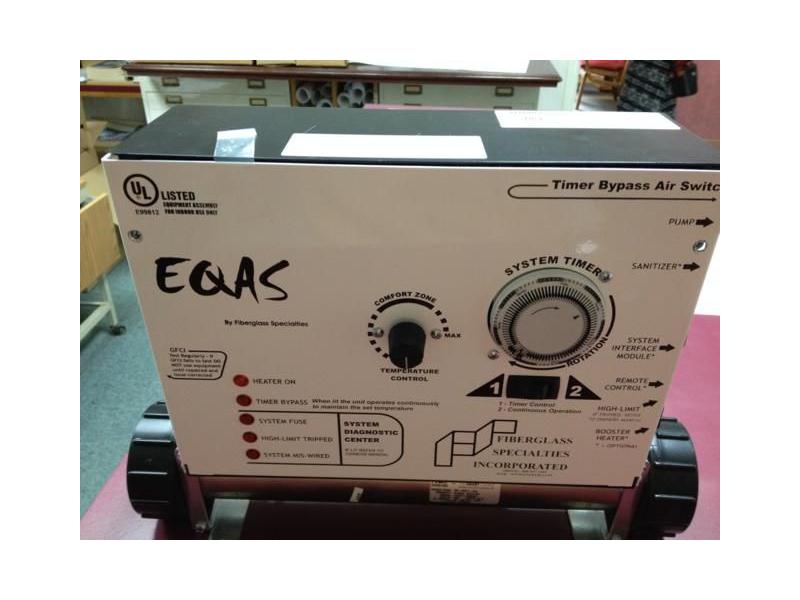

  • Visual Diagnostic System on front cover
  • Must be used on a circuit that has GFCI (Ground Fault protection)
  • Long life Incoloy heater element with stainless steel enclosure
  • ITT Hydro Aire whisper quiet pump with cord & pre-wired plug connector
  • Thermostat
  • Built in Time Clock
  • Built in Heater
  • Power ON indicator light
  • Timer Control for automatic operation
  • Manual Control switch for manual operation
  • High Limit switch with reset button
  • Internal Pressure Switch to prevent dry firing
  • Mounting base with mounting screws
  • Heater to Pump PVC pipe with fittings
  • Baptistry wall fittings included
  • Easy Hit incoming wiring lugs
  • UL Registered components and ETL listing
