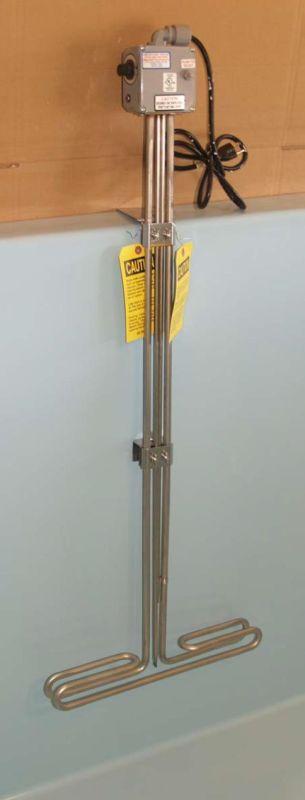

Baptistry Immersion Heater SIMPLE Just plug portable Suspend water

Model # 6HI-HL-120  120 Volts Single Phase is recommended for smaller, portable baptistries around 200 gallons or less.

Model# SS-6-42HL  240Volts Single Phase is recommended for baptistries up to around 1000 gallons. For larger baptistries, we recommend a circulation style heater.

• Easy to use with minimal installation: Just plug in to a 110v or 240 V outlet and hang over the side of the baptistry.
• Made of Stainless Steel.
• All heat confined to the formed horizontal section for optimum heat efficiency.
• Control housing located at top of cold riser
• 42" 3-Conductor cord set with polarized plug
• Adjustable moisture-proof thermostat control with temperature range of 55°F to 115°F (± 3°).
• Hi-Limit cut out switch set at 125°F (±4°).
• Stainless steel mounting bracket included. Or mount to a 2x4 and suspend in water
• Signal light and on-off switch indicates desired temperature when reached and breaks circuit when element is not in use.
• Must use with a GFI protected outlet

The 6HI-HL-120 (1.5KW) will heat 20 GPH (40° R). A 100 to 200 gallon Baptistry can be heated in 5 to 10 hours, or one-half this time for 20 degree rise in temperature.

The SS-6-42HL (6KW) will heat 60 GPH (40° R). A 750 to 1,000 gallon Baptistry can be heated in 13 to 17 hours, or one-half this time for a 20 degree rise in temperature.

Heater must be used with a GFCI outlet to comply with NEC codes. 1500 Watts UL Listed under File # E234452
