Hover over image to zoom
ASB-3816 - Fiberglass Steeple Height 16

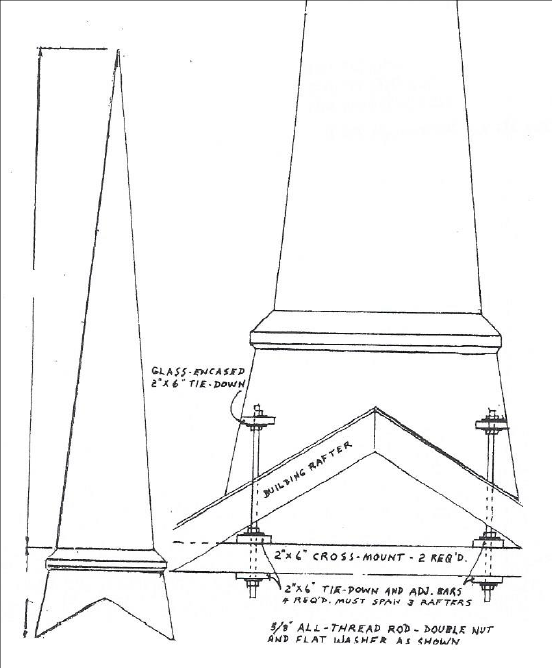

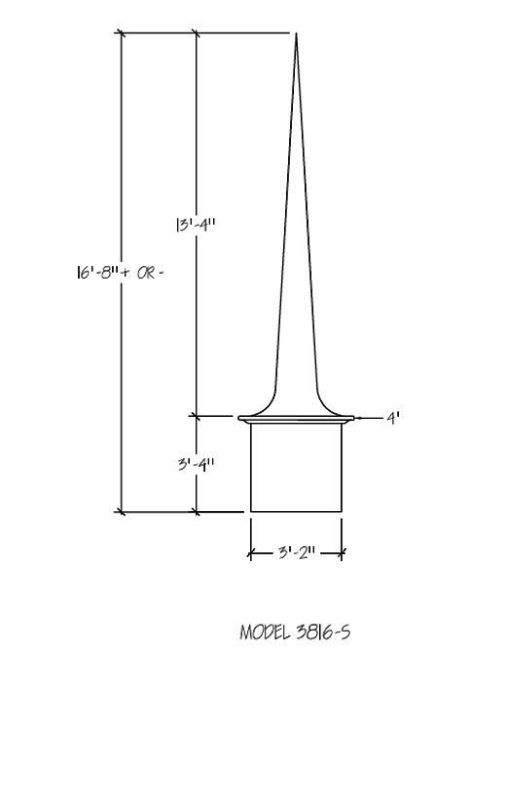

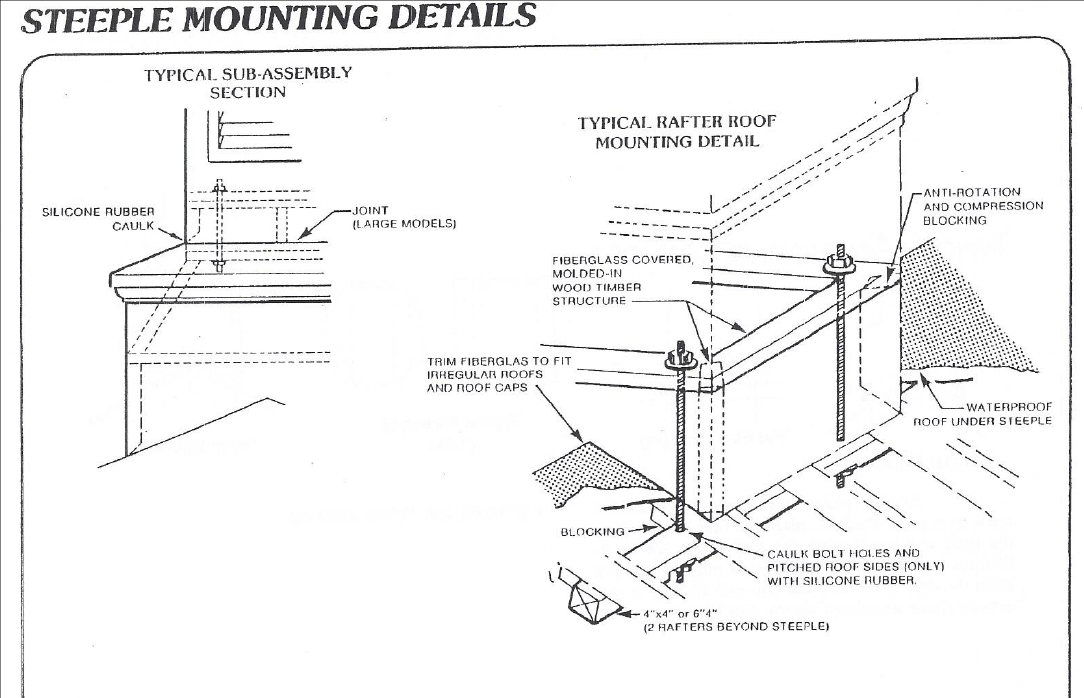

  • Click Photo for steeple dimensions and different configurations (if available)
  • Standard in white-custom colors available
  • High grade timber and woven fiberglass roving makes up the structural suports
  • Fiberglass steeple is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat never needs painting
  • Two to six week delivery - Factory Steeple Installation available in Southeast states (not in FL)
  • See additional descriptions & specifications for more information and available options
AS-Steeple Options -

OPTIONAL STEEPLE ITEMS

CHECK desired options.

Window -

OPTIONS FOR WINDOWS


Enter the QUANTITY of each option desired in box below. (Be sure to completely replace the "zero" in the box with the quantity you are ordering, )

*Real Louvres are typically ordered when you plan on putting a speaker or chime in the steeple, otherwise false louvres are generally a better choices as they keep out the weather better than real louvres.

Windows are sold EACH (i.e. If you want louvres on all 4 sides enter a "4" in the box.) We offer a range of Krinkglass options including many colors and religious images.

FS-Lightening protection -

Lightening Protection

A copper arial at the top of steeple spire is attached to copper cable running through the interior of the steeple to the steeple base.

Order additional grounding cable to run from steeple base to grounding location. Electrical code requires your electrician ground the unit. Lightening protection can provide protection in the event of a lightening strike, but is no guarantee that your steeple or building will not be damaged or destroyed by lightening.

To Order: Enter "1" in the Lightening Protection box

Enter Lineal Feet needed in "extra cable" box.

120+ MPH - WIND LOAD REQUIREMENTS

Most inland areas require 120 MPH Wind Load rating for steeples.

Many coastal areas require steeples to be rated for 120+ MPH wind loading.

In order for our steeples to meet the 120+ MPH wind load requirements, they must be engineered and have extra support bracing built in to the structure.

Select the 120+ MPH Wind Loading below and the steeple will have:
  • *Engineer's report (not location specific)
  • *Additional bracing
  • Please allow about 6-9 weeks total engineering and production time for 150 MPH rated steeples.
Steeple Delivery -

Delivery and Pickup Options


You may pickup the steeple at the factory in Weedowee, Alabama. 9% sales tax will be added to your order

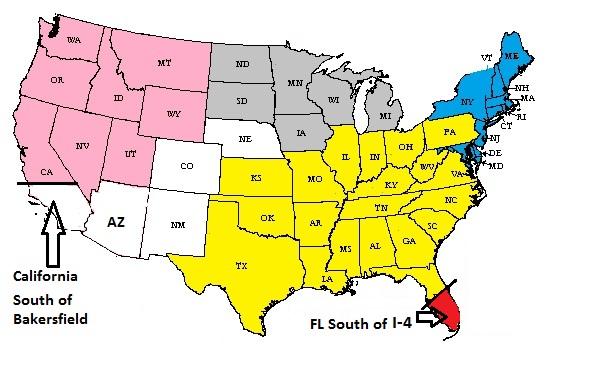

Factory delivery is generally available for all SE states.
LTL delivery is available for Western States, Canadian Border States and N.E. states above Virginia.

Please click below where it says "Click Here for Important Delivery Information" and read about steeple delivery before you place your order.
Factory Delivery is charged by the Mile from Weedowee, Alabama. (You can calculate the mileage on google and enter in box below, if mileage is over 300 miles add 100 miles for Over Night Fee.)

  • We will call you to tell you when we will be in the area. If you have particular dates such as "Do not deliver before 7/5", etc. please indicate so when ordering.

  • Weekend delivery not available unless prior approval given by factory.

  • Church is responsible for unloading the steeple. Plan to have enough man power on hand.

  • Installation not included

Price per Each
Hot Deal Bargain Great Idea
  • Fiberglass Church Steeple
  • Please see picture for dimensions and detail
  • Steeple Options Can Include (not all options available on all models)
    •  Louvres (real or simulated)
    • Octagonal, round or square windows
    • Krinklglass (plain or with design)
    • Fiberglass Ball and/or Cross for Spire
    • Metal Crosses
    • Lightening protection (grounding must be done by a certified local electrician)
    • Interior Lighting
    • Bell or chimes
    • Engineered Wind Load Drawings
    • Extra Wind Bracing for 120MPH+
    • Installation (Factory Installation not available in Florida- independant contractor list available)
  • steeple constructed with 18-22 mils of polyester gel-coat that has a UV stabilizer added to reduce deterioration from UV rays. The fiberglass is put on in three different layers, using the chopped strand method. Approximately 1/16” of fiberglass is added in each layer. Once the third and final layer, bracing is glassed into the stress points of the steeple. After the steeple halves are made from the mold, the steeple is sandwiched together with three (3) additional layers of 1 ½ oz. mat, which creates a solid 3/8” to 7/16” flange which is trimmed and gel-coated to match the steeple. After the steeple is put together the remaining braces and wind bracing are installed.
