Deluxe Acoustical Room Divider for Churches-Ceiling Heights to 10ft 1" (priced per foot)

Series 3300 Product Specifications

• Panels: 4¼" wide by ¼" thick; available in Vinyl-Lam and hardwood veneer faces, front and back
• Panel Connectors: Flexible vinyl, color-coordinated to panel selection

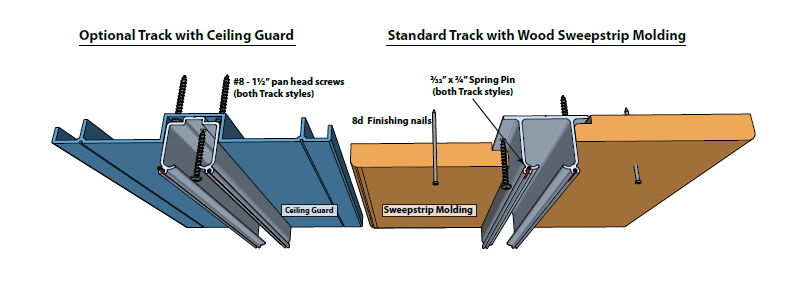

• Track: 2-7/16" x 1¾" aluminum, clear finish; heavy-duty aluminum ceiling guard with separate track available
• Sound Seal: Dual-wall doors with internal sound-absorbent material; flexible vinyl sweep strips mounted on top and bottom of the door; wood molding mounted on both sides of the track forming 11-5/8" wide sweep surface
• Wheels: 1-1/8" nylon wheels with ball bearings on steel axle
• Lead Post: 2-7/8" x 4½" heavy-duty aluminum, color-coordinated to panel connectors
• Jamb Molding: 2-1/8" wide by 15/16" deep aluminum
• Handle: Molded PVC with finger recess
• Latch: Deadlatch with thumbturn on two sides; keylock option available
• Width: Custom crafted to any width; intermediate rolling posts required on sections exceeding 15'
• Height: Vinyl-Lam up to 12'1"; hardwoods up to 10'1"
• Stacking Space: 2" per foot, plus 4½" for lead post
• WEIGHT: 8ft height is 26 lbs per lin ft. 10ft height is 32 lbs per lineal foot. 12ft height is 38 lbs per lineal foot.

*Field Sound Transmission Class: The dual-walled Series 3300 Acoustic Partition has a field sound transmission class rating (FSTC) of 33. Field tests were performed by Bruck, Richards & Chaudiere, Inc. of Seattle, Washington following the procedures specified in ASTM designation E 336-90.



How to Order Church Room Dividers

Dividers are sold by the lineal foot. So if room is 20ft wide you have 20 lin feet. Put “20” in the correct pricing box and it gives you the price at bottom of page


Dividers can be made as a single door or as a pair (i.e. 2ea 10ft sections to make up a 20ft opening. )

We think the Thumb latch is better for churches than the keylock as you don’t have to worry about a lost key

We carry 4 types of dividers
The WF240 is the basic church room divider…there is a gap at the top where it hangs from track of about 3/8” + a ½” gap at bottom to allow for uneven floors. Due to the gap there is minimal sound reduction with the series 240. (imagine your opening covered with a 5/16" sheet of plywood but with gaps at the top and bottom)

WF 2100 is the entry level sound reduction divider (not sound proof) ...you can still hear talking but the noise level is reduced. Vinyl seals at top and bottom help reduce sound and airflow. (imagine your opening covered with a 5/16" sheet of plywood with vinyl seals to cover the gaps at the top and bottom)

WF 3300 is a double walled unit so it provides more sound reduction than the 2100 series but  is still not sound proof. Vinyl seals at top and bottom help reduce sound and airflow.(imagine your opening covered with 2 sheets of 5/16" sheet of plywood with a half-inch air gap between the sheets and vinyl seals to cover the gaps at the top and bottom)

WF4100 is a double walled unit with extra sound dampening material in between the panels. Vinyl seals at top and bottom help reduce sound and airflow.(imagine your opening covered with 2 sheets of 5/16" sheet of plywood with a half-inch air gap plus heavy, sound dampening material between the sheets and vinyl seals to cover the gaps at the top and bottom). The WF4100 is close in sound reduction to a regular drywall interior wall.

All track and mounting hardware is included with the dividers.

Room dividers feature Free Shipping to the church.

We do not provide installation or recommend installers but installation of room dividers is not difficult. Provided you have adequate ceiling structure (the track must screw into ceiling joists) most dividers can be installed using competent volunteer labor on a Saturday.
